Rocky Road Racing: Rally Car Specifications

Rally Car Specifications

Current Car - Car #3
Click HERE for info on previous cars

1993 Subaru Impreza
with 2002 WRX Engine and Drivetrain
(2.0L Turbo AWD)

Used: 2008-Present

1993 Subaru Impreza 2.0L Turbo AWD

2010 Team O'Neil Rally
photo: Andrew Pascarella

ENGINE/EXHAUST
Type	Horizontally opposed (boxer), 4-cylinder, 4-stroke, liquid cooled, single overhead cam (SOHC), gasoline engine
Bore	3.62 inches	Stroke	2.95 inches
Displacement	121.4 cubic inches	Compression Ratio	8.1:1
Engine and Exhaust Modifications	ECUTEK Level 2 Tuning Walbro Fuel Pump Modified Stock Fuel Injectors Tumble Valve Delete Option (dividers, shafts, and butterflies) Catless Up-pipe 34mm Trubo Inlet Restrictor VF28 Turbo Stromung Divorced Wastegate Catless Down-pipe Davesport Metal Catalitic Converter Custom 3” Exhaust System

TRANSMISSION
Type	STi RA gearset: 5-forward speeds with syncromesh and 1-reverse
Gear Ratios	1st	3.083
	2nd	2.062
	3rd	1.545
	4th	1.151
	5th	0.825
	Reverse	3.545
	Final Reduction Gear	3.90

DRIVETRAIN
Type	All Wheel Drive - with locking center differential and Limited Slip rear differential

STEERING
Type	Rack and pinion

SUSPENSION
Front	DMS 50mm MacPherson strut type, Independent, Coil Spring
Rear	DMS 50mm Dual link strut type, Independent, Coil Spring
Front Stabilizer	0.75 inches	Rear Stabilizer	0.51 inches

BRAKES
Service Brake System	Dual circuit hydraulic with vacuum suspended power unit
Front	Ventilated disc (floating type)	Rear	Disc (floating type)
Front disc diameter	11.4 inches	Rear disc diameter	10.3 inches
Front disc thichness	NA	Rear disc diameter	NA

RALLY LIGHTS
Types	2 - HELLA Rallye 4000 Halogen Eurobeams
	2 - HELLA Rallye 4000 Halogen Cornering
	2 - HELLA Fog 450 (Amber)

RALLY COMPUTER
Type	ALPHA Pro (click here to see a picture of one)

Previous Cars

Car #1

1996 Subaru Impreza
2.2L AWD

Used: 2000-2004

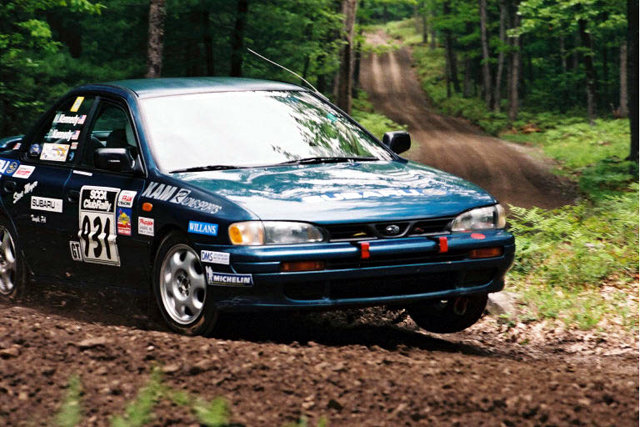

1996 Subaru Impreza 2.2L AWD
2001 Susquehannock Trail ProRally
photo: Andrew Steere

Car #1 - Version 2

1996 Subaru Impreza
with 2002 WRX engine and drivetrain
(2.0L Turbo AWD)

Used: 2004-2006

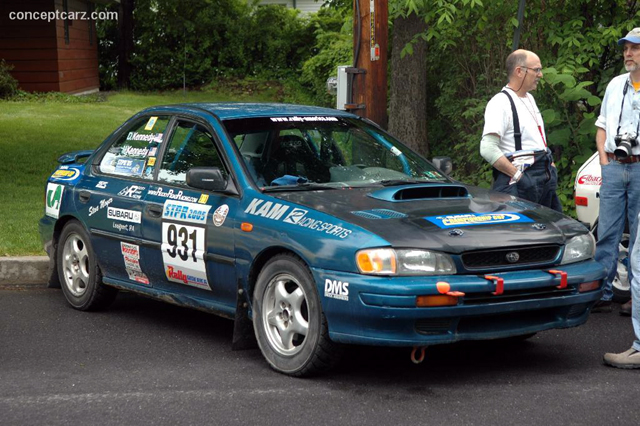

1996 Subaru Impreza 2.0L Turbo AWD
2006 Susquehannock Trail ProRally
photo: www.conceptcarz.com

1996 Subaru Impreza 2.0L Turbo AWD
2006 Susquehannock Trail ProRally - fin.
photo: Matt Kennedy

Car #2

1996 Subaru Impreza
with 2002 WRX engine and drivetrain
(2.0L Turbo AWD)

Used: 2006-2008

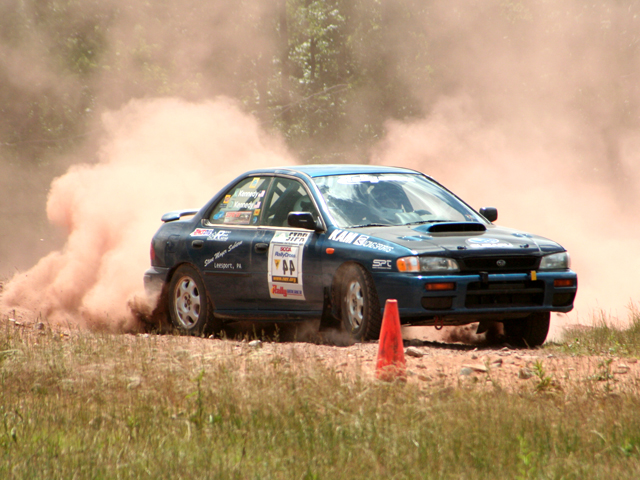

1993 Subaru Impreza 2.0L Turbo AWD
2007 Rally New York RallyCross
photo: Keith Kennedy

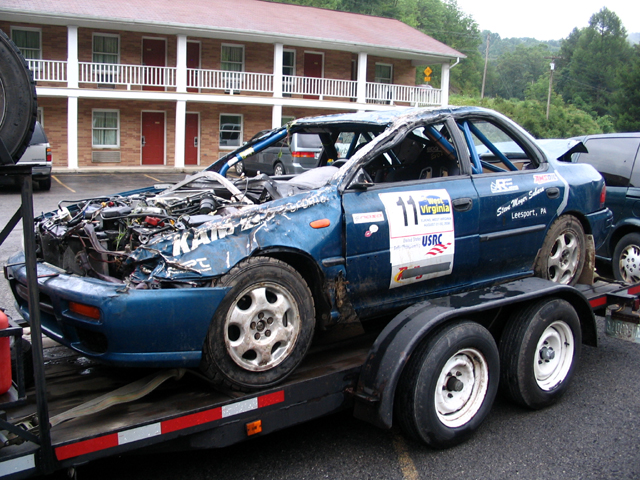

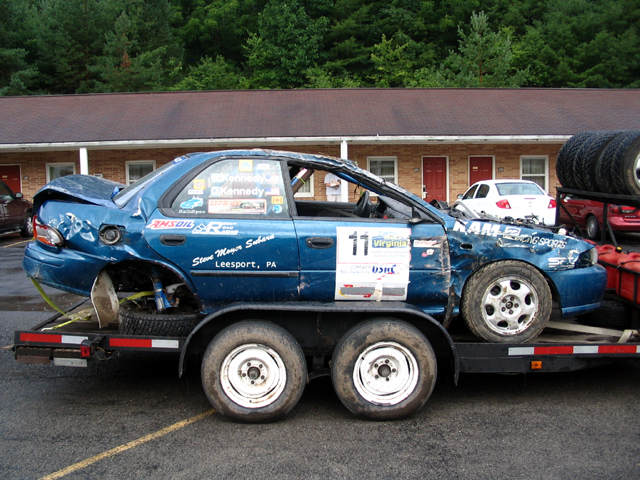

1993 Subaru Impreza 2.0L Turbo AWD
2008 Rally West Virginia - fin.
photo: Matt Kennedy
